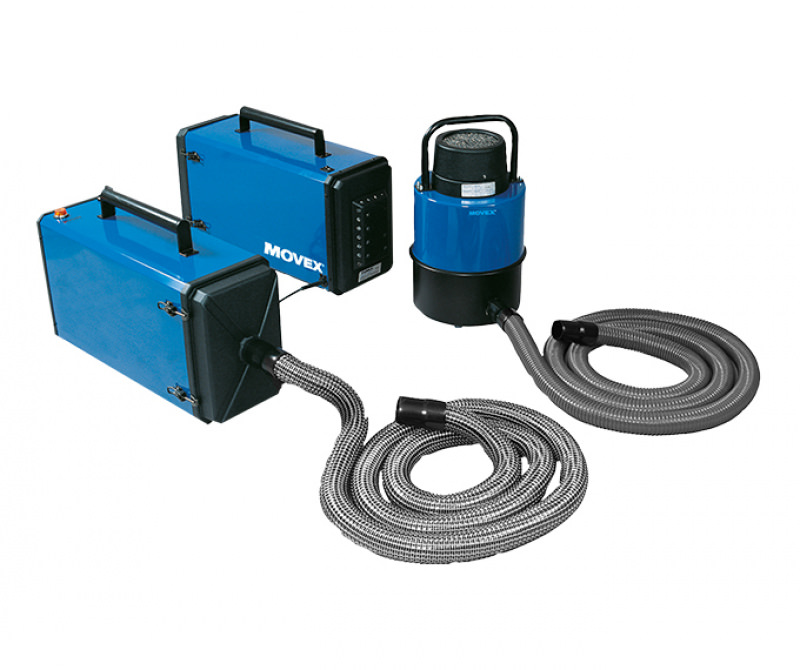

This unit is a handy extraction unit that's for a temporary welding station
Sizes and Specifications
| Product Code | SF-150S |
|
SF-300SE | SF-300SE-A |
| Air Flow M³/h | 150 |
|
280/160 | 280/160 |
| Filtration level according to EN 1822 | H13 |
|
H13 | H13 |
| Collecting efficiency % | 99,997 |
|
99,997
|
99,997
|
| Max vacuum kPa | 22 |
|
22 | 22 |
| Motor capacity W (1 phase: 2V, 50hz) | 1000 1-hast |
|
1000 1-hast
|
1000 1-hast
|
| Ext measurements (mm) - (LxWxH) | Ø400x500
|
|
600x220x330
|
600x220x330
|
| Weight (KG) | 12 |
|
18 | 16 |
| Hose Ømm x L (m) | 45x3.75 |
|
45x3.75
|
45x3.75
|
